HELIOS

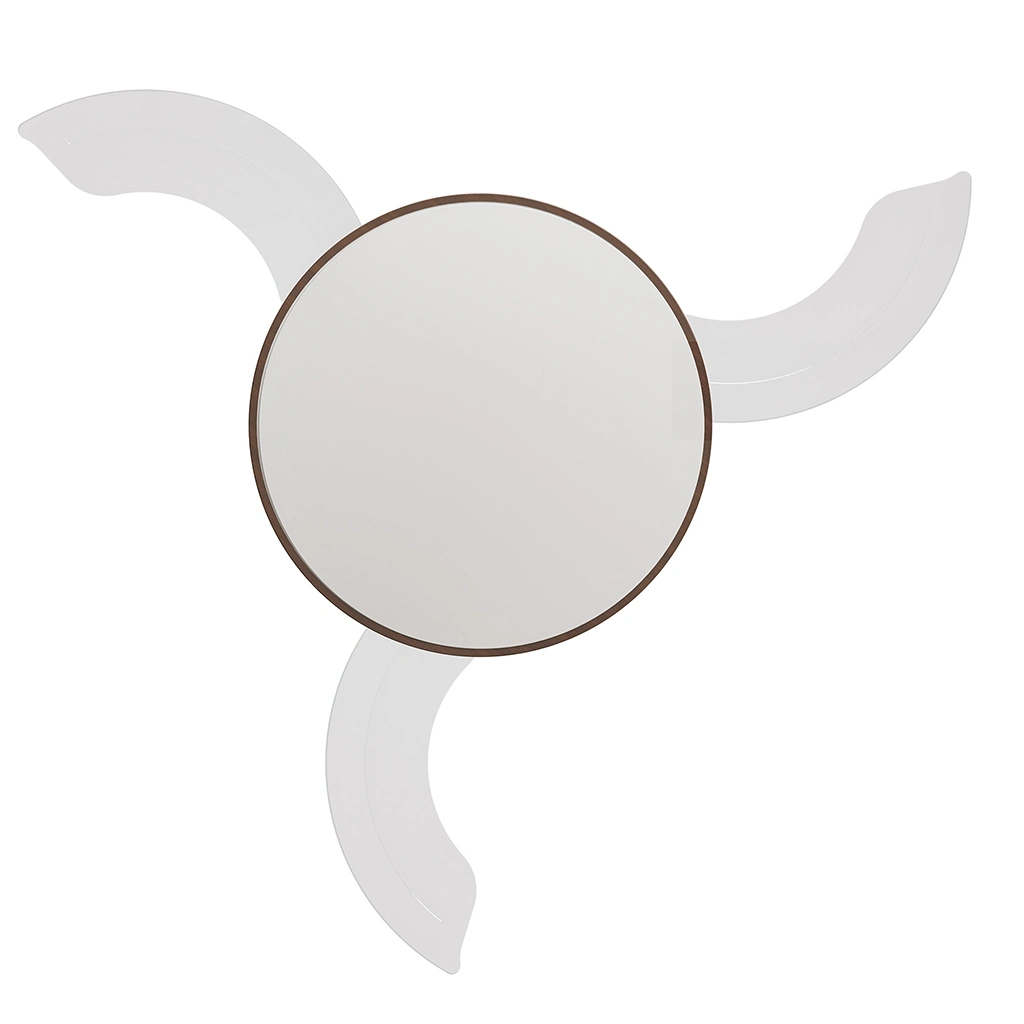

The HELIOS concealed or retractable blades ceiling fan incorporates LED light and color temperature memory, as well as a second zenithal warm LED light. It has a body made of iron with painted wood finish. It is easy to install in ceilings with an inclination of up to 15º. It includes remote control and DC motor with high efficiency and quieter. Its blades can be regulated in 6 levels and its led lighting of different intensities gradually in three different temperatures.
Ref.: HELIOSBL21

  • Retractable blades fan with double illumination
  • Wide air flow
  • 6 speeds and gradual light intensity

Instructions

Categories: ,
PHYSICAL AND ELECTRICAL CHARACTERISTICS

Height: 33/45,7cm
Diameter: 112cm
Weight: 5,86kg
Body material: Iron
Blade material: PC
Body finish: Wood
Blade finish: Transparent
Number of blades: 3
Reversible blades: No
Motor: DC
Tension: 230Vac
Speed power: 6,6W-10,4W-14,9W-20,9W-28-35,3W
RPM speeds: 136-154-177-196-210-223
Noise emitted from speeds: 36dBs-38dBs-40dBs-42dBs-44dBs-44dBs-45dBs
Air flow velocities: 4.300m3/h-4.900m3/h-5.600m3/h-6.200m3/h-6.700m3/h-7.200m3/h
Max. recommended surface: <20m2
IP: 20
Max. roof pitch: 15º
Safety distance: 2,3m
Electrical insulation: Class I
Accessories: 2 steams of 12,7cm and 25,4cm each one
Warranty: 3 years

CONTROL AND FUNCTIONS

Control: Yes
Batteries: 2xAAA (Not included)
Number of speeds: 6
Programming: 2h-4h
Breeze mode: Yes
Summer/winter mode: Yes
Thermostat: No
Ignition memory: Yes
APP: No
Wi-Fi connection: No
Bluetooth connection: No

LIGHTING

Luminous flux: 3.500lm (main) 200lm (secondary)
LED power: 30W (main) 2W (secondary)
Color temperature: Yes
Color temperature change: 2.700K-4.000K-6.500K (main) 2.700K (secondary)
Dimming: Dimable
Opening angle: 120º
Average life: 35.000h
Number of switch-ons: 40.000
Color temperature memory: Yes
Energy efficency label: F

Spare parts available for the fan HELIOS

You can purchase the replacement part for your fan at the same store where you purchased it or at another store in the same chain.

LIGHT COVER
MAIN LED MODULE
SECONDARY LED MODULE
REMOTE CONTROL
CONTROLLER
